Interested in PCB Design?
Expertise in PCB Design:
From idea to implementation, we support every stage of product development — combining deep technical knowledge with a flexible, client-focused approach.
WHAT WE OFFER:
-
Full-Cycle Production Control
From schematics to PCB layout and production optimization for reliability and cost.
-
Tailored Architecture & Component Selection
We choose the best architecture and components based on your requirements and specifications. Our solutions are always customized to your needs.
-
Advanced IC & System Design Expertise
Our experience in IC design allows our engineers to design complex electronic systems down to individual transistors.
-
Comprehensive Designs
Whether your project entails high-speed constraint-driven requirements, routing, or basic I/Os, our engineers and technical staff have the expertise to deliver comprehensive designs that are top-quality, well-managed, and on-time.
-
Project Modifications & Updates
We can also modify existing projects, bringing them up to date and replacing obsolete components while maintaining backward compatibility.
PCB DESIGN SERVICES:
We deliver advanced PCB designs with a focus on performance, reliability, and full support for manufacturing and certification.
- High-Density with backdrilling, via-in-pad, micro, buried, and blind vias (epoxy and conductive fill)
- High-Speed, Multi-Layer Digital Designs (controlled impedance, differential pairs, matched lengths)
- Extensive EMC/EMI Design Expertise
- Mixed-Signal Design
- Complete Assembly Drawings
- Professional Fabrication Documentation
- Heat Sink Matching
- Design for Manufacturability (DFM)
- Design for Testability (DFT)
- Design for Reliability (DFR)
- Electronic Device Production Cost Optimization
- Rules-Driven Designs
- Analog Circuit Simulation
- Thermal Engineering
- Design to Standards and Certifications
- In-Lab Prototype Testing (EMC/EMI, Vibration, Climatic Chamber)
- Certification Process Management
- Final Test Documentation
- RoHS-Compliant Designs
OUR PROJECTS:
-

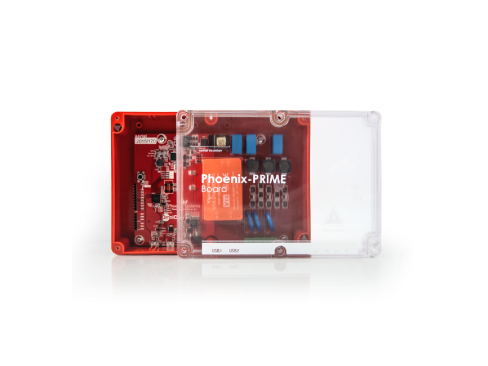

Phoenix-PRIME Board- Featuring Freescale's Kinetis K21
- Custom AFE built on top of TI's AFE031
- Host interface via UART over USB
- Easy to integrate into custom products (smart meters)
- Passed PRIME certification
-

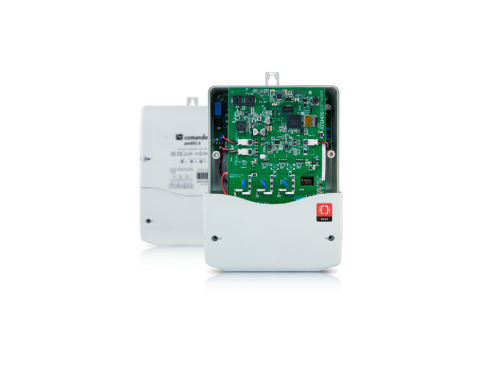

Data Concentrator Unit- Featuring Freescale's Vybrid5
- PRIME communication (passed electrical certification)
- Cost competitive
- Overvoltage Category III
- 3-phase voltage and current measurements (accuracy better than 0.2%)
- Expected lifetime 8 years
-

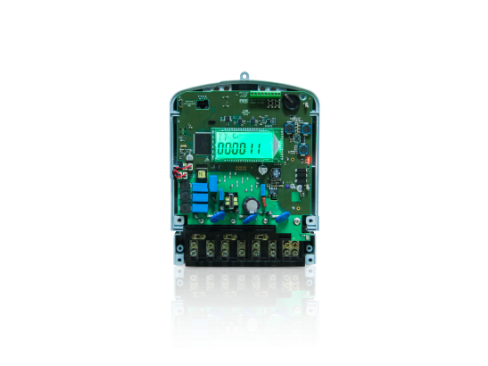

3-phase and 1-phase Smart Meters- Featuring Freescale's Vybrid3
- Voltage and current measurements
- PRIME communication
- USB support
- Ethernet support
- Overvoltage Category III
-

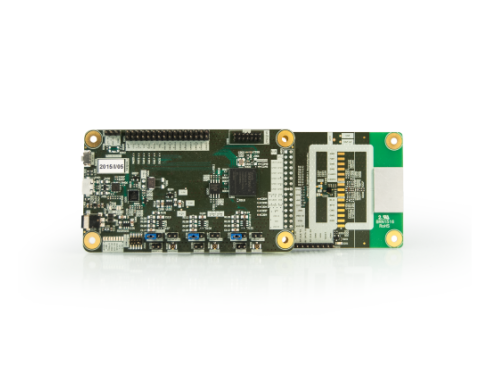

FPGA Evaluation System- Featuring Xilinx's Spartan6
- Host communication via USB
- USB power supply
- Thermal shroud tests compatibility
- PCB antenna
-

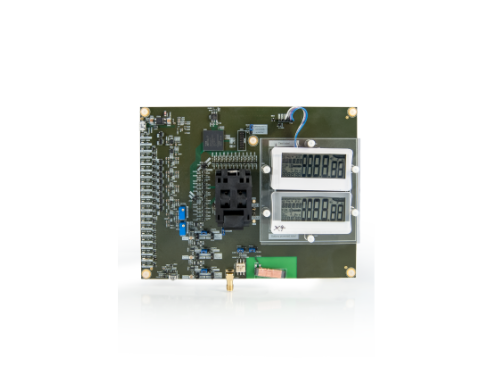

FPGA Demonstration Platform- Featuring Xilinx's Artix7
- USB power supply
- External supply support
- Host communication via USB
- Currents measurements ports
-

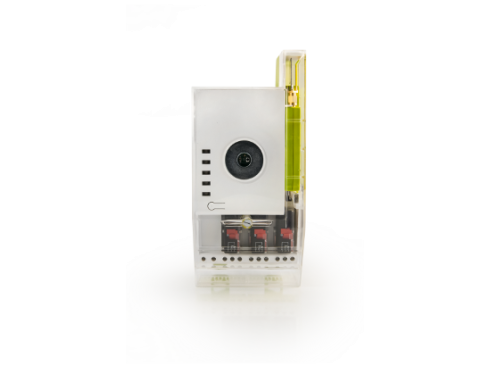

Remote Switching Device- 20 years of expected lifetime
- Optional 2G/3G/4G modem
- Up to 3x SPDT 25A switches
- Relay presence detection
- MEMS motion sensor: 3-axis digital gyroscope with accelerometer
- Overvoltage Category IV
- Supercap or battery backup
We will help you design any prototyping platform for your IC
